Chicago Metallic® Spanfast® Drywall Grid

Chicago Metallic® Spanfast® Drywall Grid System is available in a heavy-duty design, and is built with HDG 40 steel. This gypsum panel suspension system is an ideal choice for short spans or congested plenums where installing hanger wires is difficult and time consuming and, in many applications, eliminates the need for hanger wires. SpanFast™ drywall framing system reduces onsite labor by using a pre-notched drywall ceiling track to lock the furring tees in place.

CTA_LmwxsDownload Datasheet

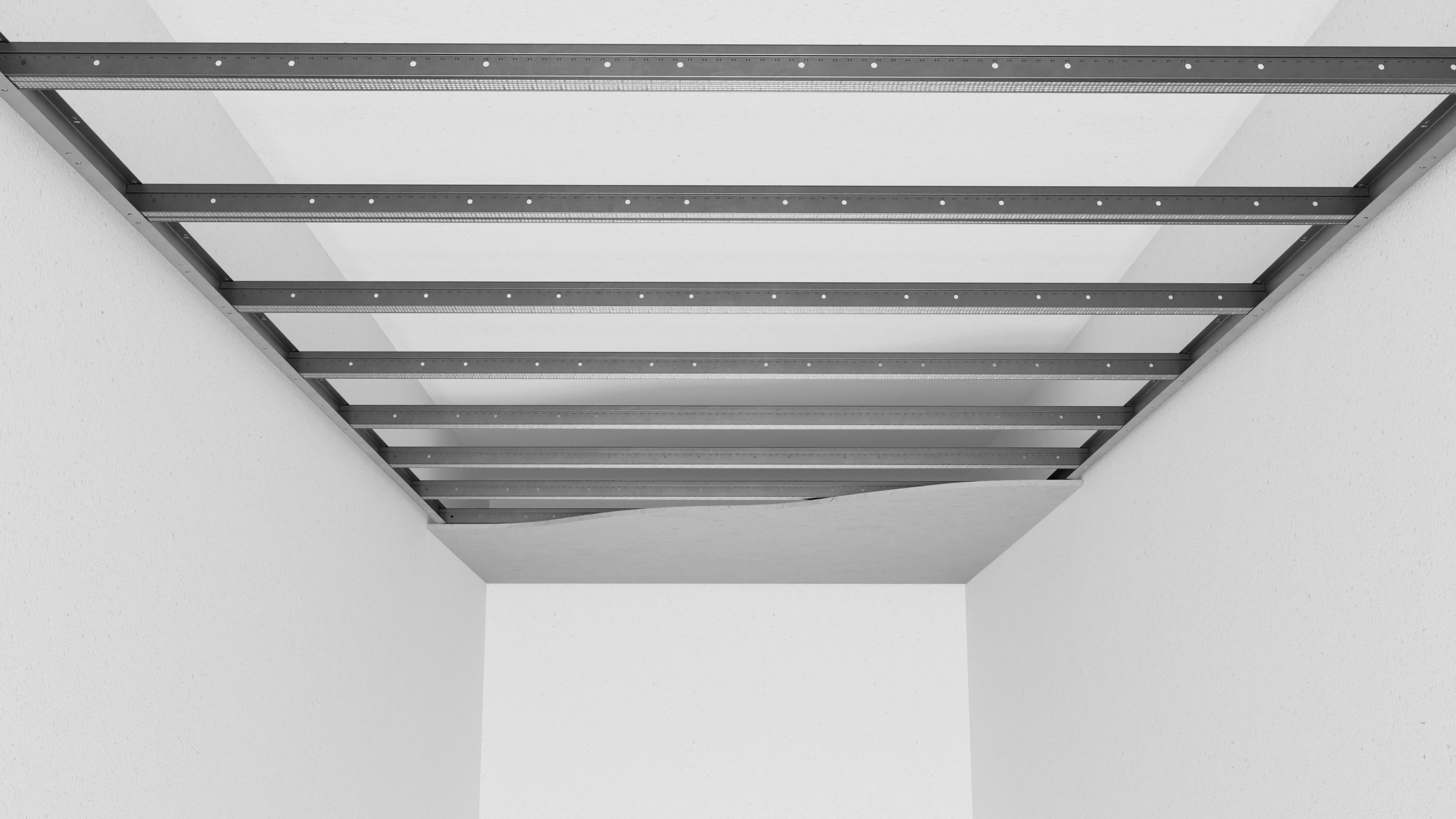

NA; Drywall Grid; Spanfast wall to wall install rendering

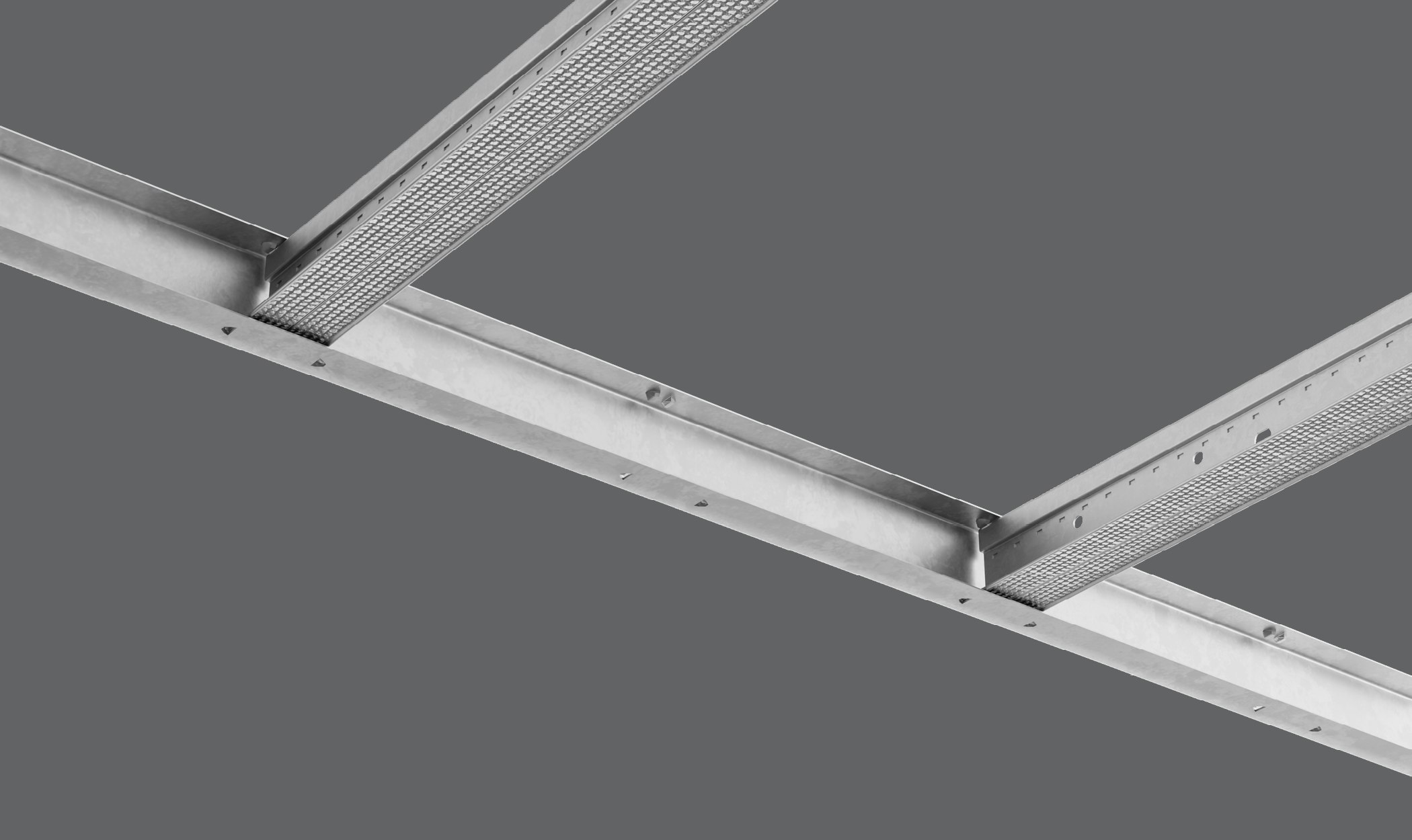

NA; Drywall Grid; Spanfast runners installed - Bottom view rendering

1/2

  • UL GREENGUARD Gold
  • Environmental Product Declaration

Application

  • Product Type
  • Grid suspension systems
  • Performance
  • Seismic
  • Sectors
  • Healthcare

Product Description

Chicago Metallic® Spanfast® Drywall Grid System is available in a heavy-duty design and produced from HDG 40 steel. This gypsum panel suspension system is an ideal choice for short spans or congested plenums where installing hanger wires is difficult and time consuming and, in many applications, eliminates the need for hanger wires. SpanFast™ drywall framing system reduces onsite labor by using a pre-notched drywall ceiling track to lock the furring tees in place. Chicago Metallic™ grid systems are third party certified to meet ASTM standards and are listed with ICCES Evaluation Services, reference report ESR-2631 for further details.

  • Eliminates hanger wires for spans up to 9'
  • Reduce install time and labor with pre-notched channel
  • Prevent screw spin out with patented screw stop feature
  • Backed by a 40 year warranty
  • UL GREENGUARD Gold certified for low VOC emissions
  • Up to 30% recycled content
